RF Detector | Pocket Digital RF Detector | 0-12 GHz
PRO-W12DX JJN Digital

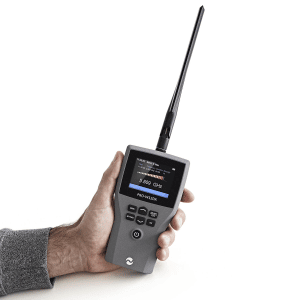

With the PRO-W12DX RF Detector you can detect and locate signals from the very latest covert listening, tracking, cellular and video devices. The JJN PRO-W12Dx features a 0 to 12 GHz frequency detection range with ultra-high sensitivity. It’s a camera detector, bug detector and GPS tracker detector in a handheld, lightweight form factor. Ideal for professional TSCM applications.
View the RF Detector PRO-W12DX Brochure
ComSec LLC is the North American Distributor of the JJN Digital PRO-W12DX RF Detector.
REQUEST QUOTE
RF Detector PRO-W12DX Highlights
- 0–12 GHz RF frequency range with unrivaled sensitivity particularly at higher frequencies for the growing threat from the latest super high-frequency devices.
- An intelligent frequency-counter design displays most digital frequencies, as well as analog signals up to an unprecedented 6 GHz.
- Signal strength is shown on a 20 element bar graph, so you can precisely locate the source of any detected signal.
- The frequency of the detected signal can be seen simultaneously and the new ‘Livescan’ software shows the detected live signal pattern graphically to help identify the signal type. This can be very useful when searching for pulsing or burst devices such as GPS trackers.
- Features a 1000 Event Memory Log that stores all detected signal data including any short Burst transmissions, their frequency, event time, duration, and signal strength.
Monitoring Modes
Signal strength can be monitored in audible ‘Beep’ Mode or Silent Vibrate Mode. So, the PRO-W12DX is ideal for discreet or concealed use. Detected signals can be listened to via earphones using the Audio Demodulation function, useful when detecting conventional analog listening devices that contain microphones.

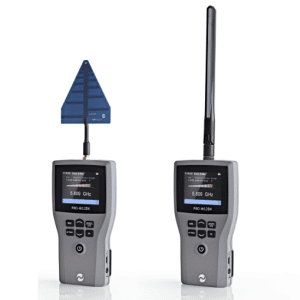

Antennas
Your PRO-W12DX purchase includes two antennas:
- High performance hinged omni-directional antenna for general use; and

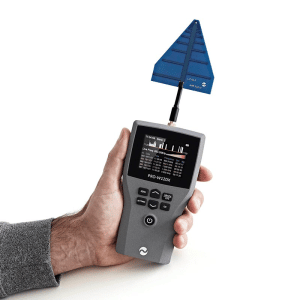

- High gain directional antenna for pinpointing high frequency signals at greater distance.
Display Modes

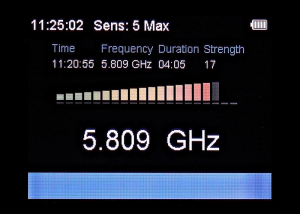

You can precisely locate the source of any detected signal using the signal strength, which is displayed on a 20 element bar graph.
The frequency of the detected signal can be seen simultaneously. So, you can easily detect the live signal pattern graphically and identify the signal type using the ‘Livescan’ software. This can be particularly useful when you are searching for pulsing or burst devices, such as GPS trackers.

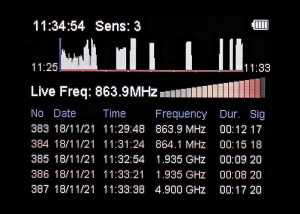

GRAPH – LOG Mode
The PRO-W12DX features a 1000 Event Memory Log that stores all detected signal data including any short Burst transmissions, their frequency, event time, duration, and signal strength. These events are shown in an easy-to-read list format that you can scroll through. Events can also be viewed simultaneously in Graph-Log Mode where up to 8 minutes of live detected signal and frequency data is recorded and plotted on a graph.
The memory functions ensure you won’t miss any detected events. It’s invaluable for helping you determine exactly what type of signal is being detected.
REQUEST QUOTE
JJN PRO-W12DX Construction & Accessories
The JJN Digital PRO-W12DX is designed and manufactured in the UK to the highest specifications. Each unit is provided in a machined aircraft-grade aluminum enclosure. And, it’s powered by an integral Lithium-polymer battery pack and supplied with an international charger.
- Made in the United Kingdom.
- One (1) year manufacturer’s warranty.
Supplied Accessories
- Adjustable hinged Antenna
- Directional High Gain Antenna
- 5V DC Charger – 110V to 240V AC input (Auto Switching) with International Adaptors
- Earphones

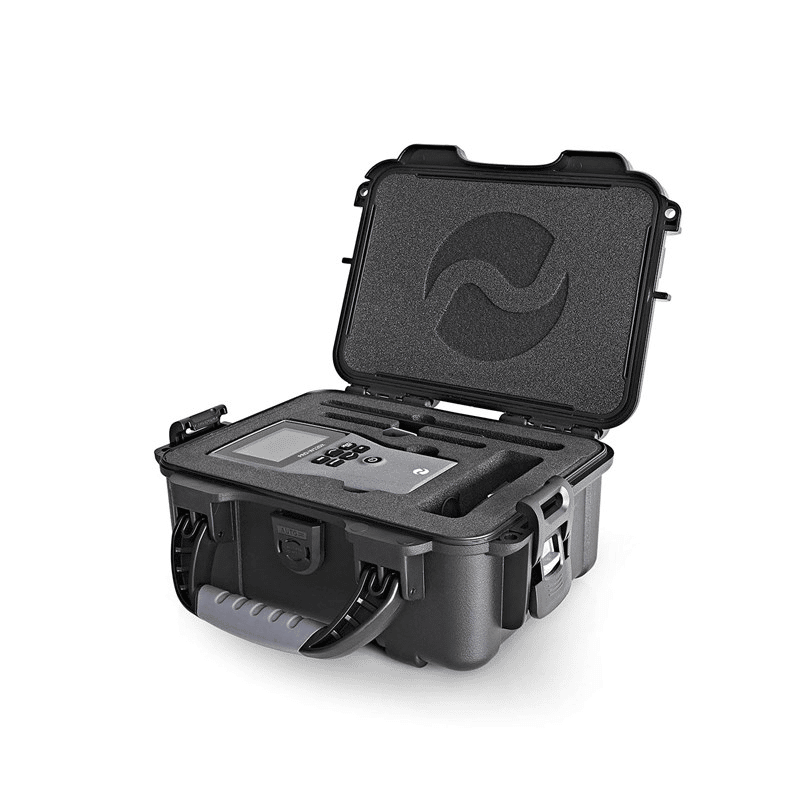

- Heavy Duty Carry Case
Product Specifications
- Ultra wide frequency response – Now up to 12 GHz with improved top end performance
- Frequency Counter 0-6 GHz for analogue and digital signals
- ‘Livescan’ feature shows live detected signal trace
- 1000 Event Memory Log with Time & Date records all detected Burst signals & frequencies
- Live Graph Mode plots detected signals / frequencies over time
- 2.5 inch Color TFT display
- Ultra-sensitive – even at very high frequencies
- Two antennas – High Gain Directional antenna and Hinged Omni Directional antenna
- Signal Strength ‘Beep’ and Silent Vibrate Mode
- Machined Aluminum Enclosure for maximum durability
- Supplied in heavy duty protective plastic carry case
View the RF Detector PRO-W12DX Brochure
TECHNICAL SPECIFICATIONS
Typical Performance Characteristics (At 68 Degrees F)
Antenna Connector: SMA Socket – 50 Ohm
Input Frequency Range: 1MHz – 12,000 MHz (12.0 GHz)
Sensitivity
- 100 MHz -49 dBm
- 200 MHz -48 dBm
- 500 MHz -47 dBm
- 1 GHz -44 dBm
- 2 GHz -50 dBm
- 5 GHz -42 dBm
- 10 Ghz -30 dBm
- 12 GHz -28 dBm
Demodulation Sens. for 50mW AUDIO: -30dBm (measured at 500MHz 50% AM 1kHz)
Audio Frequency Response: 400Hz – 5kHz +/-2dB
Display: TFT Color 2.5” High Contrast Graphic Display
Battery:
- Internal 3.7V 1500 mAH Li-Ion rechargeable
- Operating Duration – fully charged battery 8 hours
- Charge Time – 4 hours
Operating Temperature Range: 5 – 122 Degrees F, Relative Humidity < 90%
Dimensions: 5.7 In x 3.1 In x 1 In (Main Unit without Antenna)
Weight:
- Main Unit: 0.6 Lbs
- Complete System in Carry Case: 2.9 Lbs
Signal Processing and Control: RISC Based Microcontroller
Memory
- 1000 Event Log – Time & Date – non-volatile memory
- 8-minute live graph of signal data and frequency
View the RF Detector PRO-W12DX Brochure
ComSec LLC: EXCLUSIVE NORTH AMERICAN DISTRIBUTOR
