Kestrel Scout RF Locator

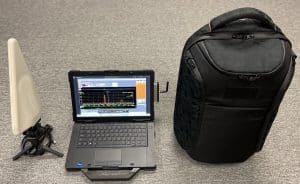

Each Kestrel Scout RF Locator 6 GHz, Laptop Kit, Includes:

• Rugged Laptop:
  • i7 11^th Generation Processor, 32 GB RAM SSD, 1TB On Board. 14″ Touch screen. Dual hot-swappable batteries. Temperature-tested from –20°F to 145°F, drop-tested from up to 3 feet and IP-53 rated for a high-degree of protection against dust, dirt and water ingress. Carry handle.
• Signal Hound BB60C Spectrum Analyzer
  • (0C – + 65C, Standard Temperature), Range: 9 kHz to 6.0 GHz, Sweep Speed (RBW ≥10 kHz): 24 GHz/sec.
• Kestrel TSCM Professional Software License
• Kestrel Log Periodic Antenna Kit
• Omni Micro Antenna
• Bluetooth Mouse
• Delivered in a Black/Urban Camo Backpack (24 Liter)

Optional Add Ons & Upgrades:

• • Kestrel OPT AMCS (Automatic Measurement and Collection System) provides remote TCP-IP capability with our powerful Software Development Kit (SDK) for custom client-side monitoring solutions.
  • Kestrel OPT DTAP-GPS (Dynamic Trace Autonomous Platform GPS) supports the mobile deployable of our autonomous, GPS enabled, wide-area Dimensional Geo-Location Heat Mapping resource.
  • Signal Hound BB60C, -40C to +65 C Operating Temperature.
  • Wheeled Backpack (Black)

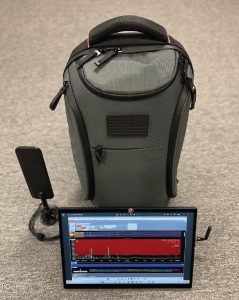

Each Kestrel Scout RF Locator 6 GHz, Tablet Kit, Includes:

• 13.5″ Touchscreen Gaming Tablet
  • i9 12^th Generation Processor, 16 GB RAM, 1TB On Board. 13.5″ Touch screen.
• Signal Hound BB60C Spectrum Analyzer
  • (0C – + 65C, Standard Temperature), Range: 9 kHz to 6.0 GHz, Sweep Speed (RBW ≥10 kHz): 24 GHz/sec.
• Kestrel TSCM Professional Software License
• Omni Micro Antenna
• Kestrel Feather Antenna with Magnetic Base
• Bluetooth Mouse
• Delivered in a Gray Backpack (18 Liter)

Optional Add Ons & Upgrades:

• • Kestrel OPT AMCS (Automatic Measurement and Collection System) provides remote TCP-IP capability with our powerful Software Development Kit (SDK) for custom client-side monitoring solutions.
  • Kestrel OPT DTAP-GPS (Dynamic Trace Autonomous Platform GPS) supports the mobile deployable of our autonomous, GPS enabled, wide-area Dimensional Geo-Location Heat Mapping resource.
  • Signal Hound BB60C, -40C to +65 C Operating Temperature.

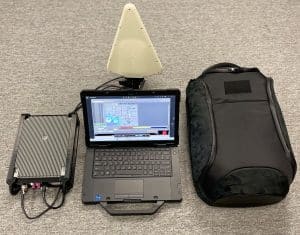

Each Kestrel Scout RF Locator 20 GHz Kit Includes:

• Rugged Laptop:
  • i7 11^th Generation Processor, 32 GB RAM SSD, 1TB On Board. 14″ Touch screen. Dual hot-swappable batteries. Temperature-tested from –20°F to 145°F, drop-tested from up to 3 feet and IP-53 rated for a high-degree of protection against dust, dirt and water ingress. Carry handle.
• Signal Hound SM200B Spectrum Analyzer
  • 0C – + 50C , Standard Temperature. Tuning from 100 kHz to 20GHz, 1THz/sec sweep speed at 30kHz RBW.
• Kestrel TSCM Professional Software License
• Kestrel Log Periodic Antenna Kit
• Bluetooth Mouse
• Power Bank w/AC Outlet
• Choose a Wheeled Backpack (30 Liter) or Wheeled Briefcase (27 Liter) Color: Black.

Optional Add Ons & Upgrades:

• • Add Kestrel OPT AMCS (Automatic Measurement and Collection System) provides remote TCP-IP capability with our powerful Software Development Kit (SDK) for custom client-side monitoring solutions.
  • Ad Kestrel OPT DTAP-GPS (Dynamic Trace Autonomous Platform GPS) supports the mobile deployable of our autonomous, GPS enabled, wide-area Dimensional Geo-Location Heat Mapping resource.
  • Upgrade to Laptop 2TB Onboard Memory
  • Upgrade Signal Hound SM200B Spectrum Analyzer to Option 1 Temperature Range: -40C to +65 C
  • Add a Carbon Fiber Chassis for SM200B Spectrum Analyzer (Shown in photo above.)

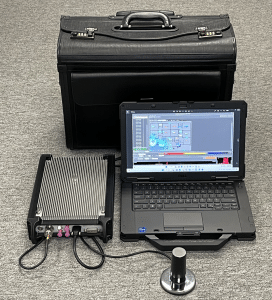

Each Kestrel Scout RF Locator 43.5 GHz Includes:

• Rugged Laptop:
  • i7 11^th Generation Processor, 32 GB RAM SSD, 1TB On Board. 14″ Touch screen. Dual hot-swappable batteries. Temperature-tested from –20°F to 145°F, drop-tested from up to 3 feet and IP-53 rated for a high-degree of protection against dust, dirt and water ingress. Carry handle.
• Signal Hound SM435B Spectrum Analyzer
  • 0C – + 50C , Standard Temperature. Tuning from 100 kHz to 43.5 GHz, 160 MHz of Instantaneous Bandwidth (IBW), 110 dB of Dynamic range, 1 THz/sec Sweep Speed at 30kHz RBW.
• Kestrel TSCM Professional Software License
• OmniMag Antenna
• Bluetooth Mouse
• Power Bank w/AC Outlet
• Choose a Wheeled Backpack (30 Liter) or Wheeled Briefcase (27 Liter) Color: Black.

Optional Add Ons & Upgrades:

• • Add Kestrel OPT AMCS (Automatic Measurement and Collection System) provides remote TCP-IP capability with our powerful Software Development Kit (SDK) for custom client-side monitoring solutions.
  • Add Kestrel OPT DTAP-GPS (Dynamic Trace Autonomous Platform GPS) supports the mobile deployable of our autonomous, GPS enabled, wide-area Dimensional Geo-Location Heat Mapping resource.
  • Upgrade to 2TB Laptop Onboard Memory
  • Upgrade Signal Hound SM435B Spectrum Analyzer to Option 1 Temperature Range: -40C to +65 C
  • Add a Carbon Fiber Chassis for SM435B Spectrum Analyzer (Shown in photo above.)

Kestrel TSCM Professional Software

Kestrel TSCM software is ideal for technical surveillance countermeasures (TSCM), intelligence, counter terrorism and managed Remote Spectrum Surveillance and Monitoring (RSSM). This leading TSCM software also has  applications in the law enforcement community, government, military, space, and spectrum regulatory agencies. Kestrel TSCM Professional Software also provides unique features and functionality for private sector and corporate security teams conducting TSCM, counter espionage related technical security operations.

Watch the Kestrel TSCM Professional Software Video:

View the Kestrel TSCM Professional Software Brochure.

Learn more about USA Kestrel TSCM Software In Person Classroom Training.

About the Kestrel TSCM Professional Software License

• A single full software license is permanent across one (1) computer with up to two (2) SDRs for hand off operation. Add additional SDRs with OPT ASK(s).
• There are no annual maintenance, or upgrade fees within the same software generation.
• Supports Dual Receiver Operation (DRO) at the time of purchase, or as deployment needs and requirements change.
• Updates, bug fixes, new features and enhanced functionality are always provided free of charge within the same generation of the software.
• Additional ASKs and optional software modules (OPT AMCS and OPT DTAP-GPS) require an upgrade fee.
• If customers choose to upgrade to a new generational software release, an upgrade fee will apply. However, upgrading is a choice as the prior generation of the software will remain supported.
• Software updates are provided for air gapped and non air gapped systems.

Optional Modules

Kestrel TSCM Professional Software Optional Modules enhance its capabilities and functionality. Optional modules include OPT AMCS (Automatic Measurement and Collection System) and OPT DTAP-GPS (Dynamic Trace Autonomous Platform GPS).

• OPT AMCS (Automatic Measurement and Collection System) provides remote TCP-IP capability with our powerful Software Development Kit (SDK) for custom client-side monitoring solutions.
• OPT DTAP-GPS (Dynamic Trace Autonomous Platform GPS) supports the mobile deployable of our autonomous, GPS enabled, wide-area Dimensional Geo-Location Heat Mapping resources.

Signal Hound Software Defined Radios

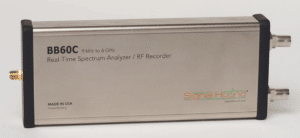

BB60C

BB60C Data Sheet

• 9 kHz to 6 GHz Spectrum Analyzer and RF Recorder
• Instantaneous bandwidth of 27 MHz
• Sweep speeds of 24 GHz/sec.
• SDR Size: 8.63” x 3.19” x 1.19”
• SDR Weight: 1.10 lbs.

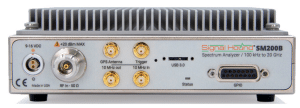

SM200B

SM200B Data Sheet

• 100 kHz to 20GHz Spectrum Analyzer and Monitoring Receiver
• Instantaneous bandwidth (IBW) of 160 MHz
• Dynamic Range: 110 dB
• 1THz/sec sweep speed at 30kHz RBW (using Nuttall windowing)
• SDR Size: 10.2” x 7.2” x 2.15”
• SDR Weight: 7.77 lbs.

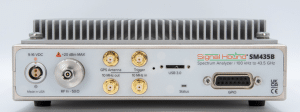

SM435B

SM435B Data Sheet

• 100 kHz to 43.5 GHz Spectrum Analyzer and Monitoring Receiver
• Instantaneous bandwidth (IBW) of 160 MHz
• Dynamic Range: 110 dB
• 1THz/sec sweep speed at 30kHz RBW (using Nuttall windowing)
• SDR Size: 10.2” x 7.2” x 2.15”
• SDR Weight: 7.77 lbs.

Warranty:

Signal Hound Spectrum Analyzers Include Manufacturer’s 2-year Standard Warranty.
