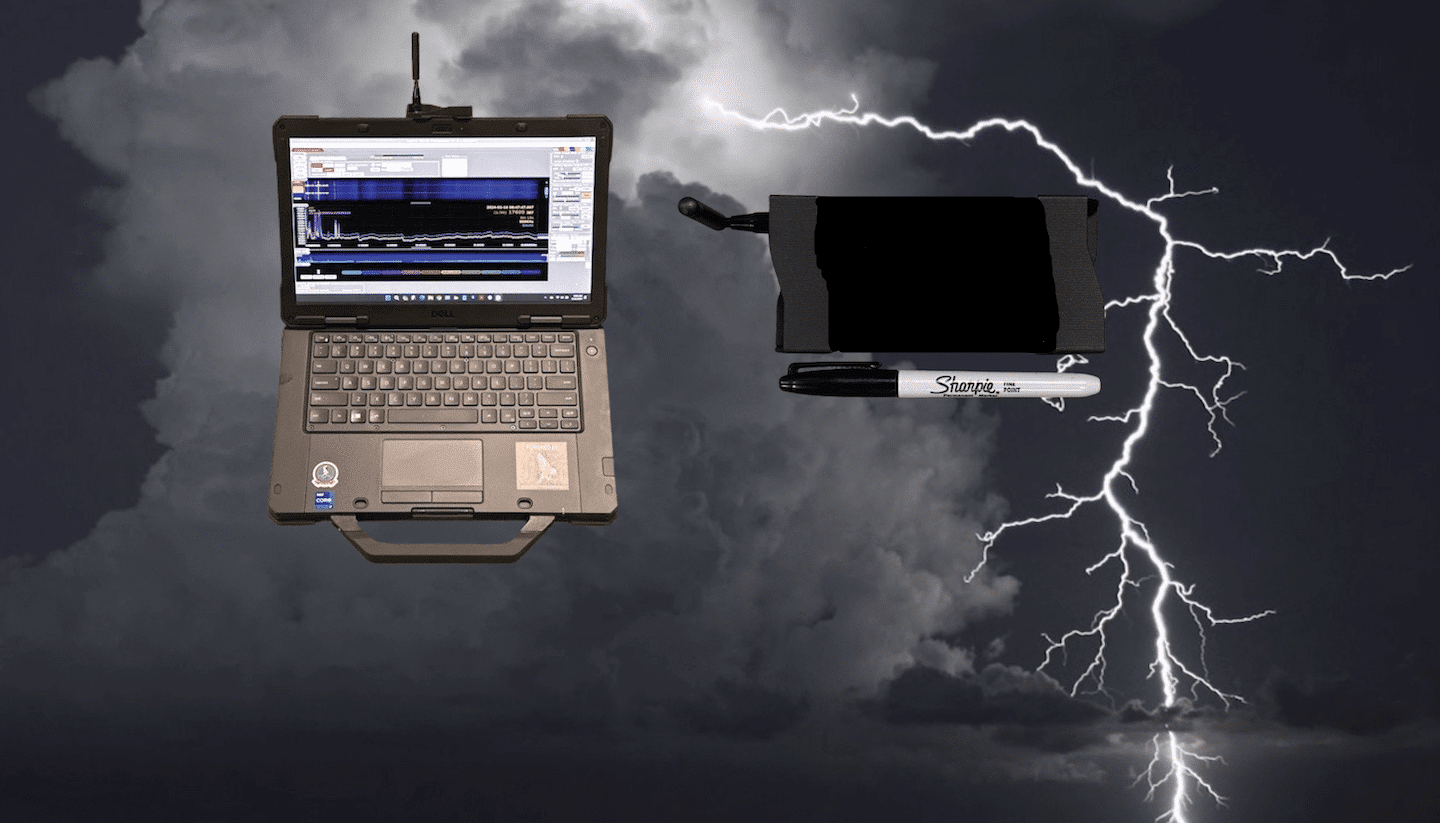

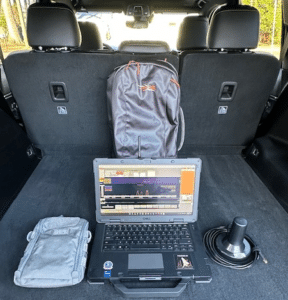

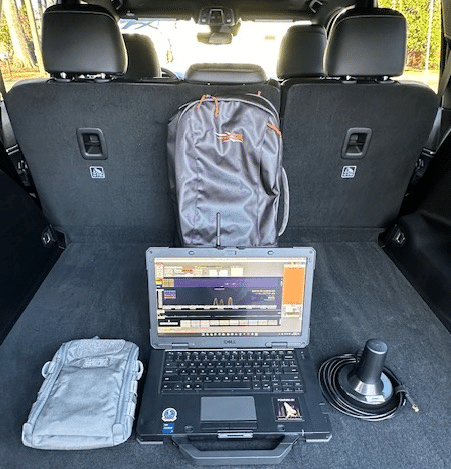

STORM Mobile SIGINT Kit

The STORM Kit Includes

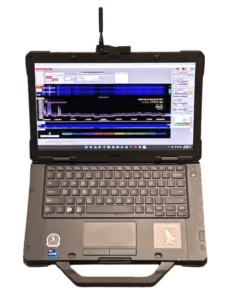

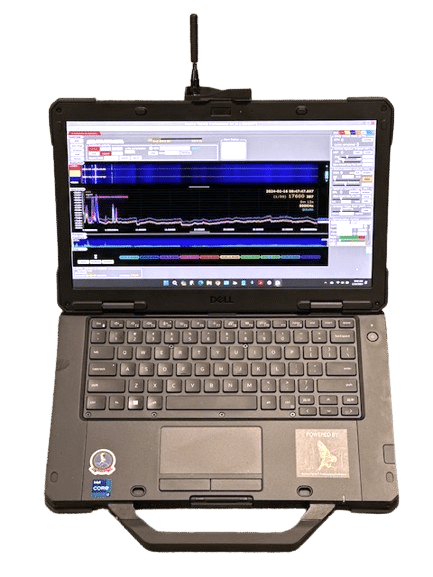

• Ruggedized Intel Controller:
  • 24×7 operation with dual hot-swappable batteries with up to 25-hour battery runtime and Express Charge Boost for up to a 35% charge in 20 minutes, so you can be always on. Temperature-tested from –20°F to 145°F, drop-tested from up to 3 feet and IP-53 rated for a high-degree of protection against dust, dirt and water ingress.
• Kestrel Lightning KL400 Real Time Spectrum Analyzer
  • (32 F – 140 F Standard Temperature), Range: 9 kHz to 40 GHz, Sweep Speed 1300 GHz/s (MAX).

• Kestrel TSCM Professional Software License
• THUNDERBOLT Antenna Kit
• Bluetooth Mouse
• Delivered in a Black/Urban Camo Backpack (24 Liter)

Optional Add Ons & Upgrades:

• • Kestrel OPT AMCS (Automatic Measurement and Collection System) provides remote TCP-IP capability with our powerful Software Development Kit (SDK) for custom client-side monitoring solutions.
  • Kestrel OPT DTAP-GPS (Dynamic Trace Autonomous Platform GPS) supports the mobile deployable of our autonomous, GPS enabled, wide-area Dimensional Geo-Location Heat Mapping resource.
  • Kestrel Lightning KL400 Real Time Spectrum Analyzer, -4 F – 158 F Extended Temperature Class
  • Wheeled Backpack (Black)

• REQUEST QUOTE

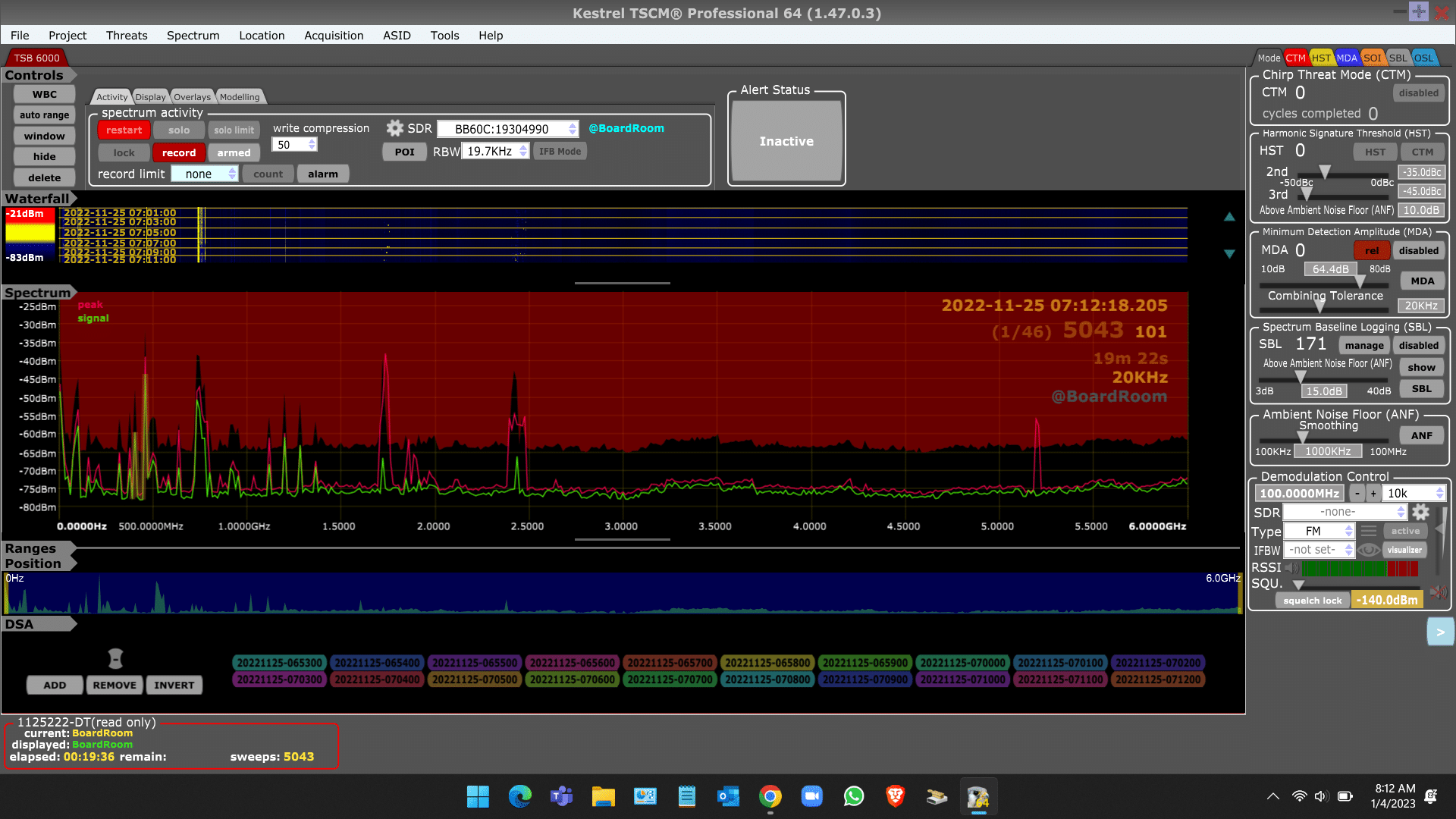

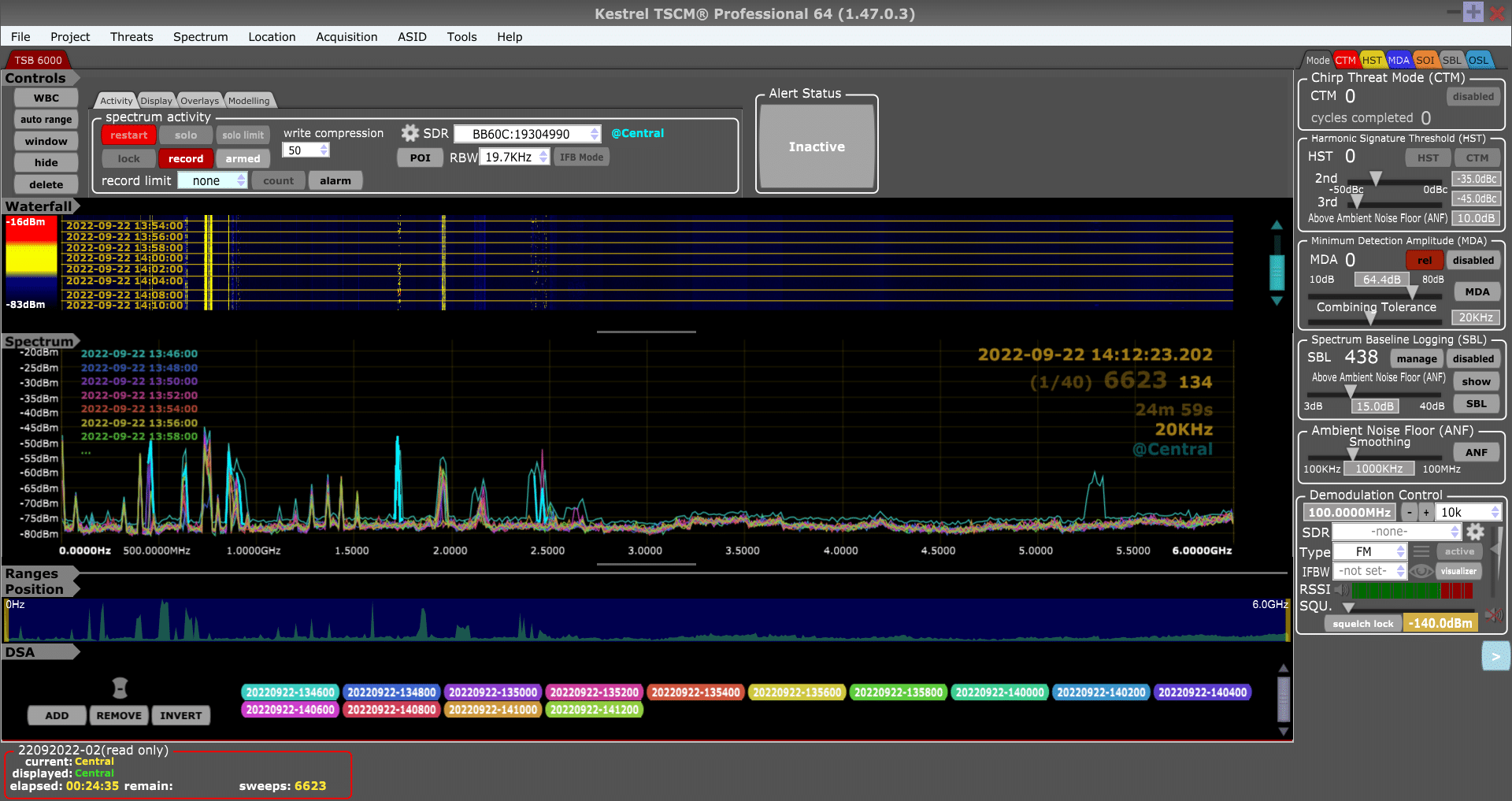

Kestrel TSCM Professional Software

Kestrel TSCM software is ideal for Signals Intelligence (SIGINT), technical surveillance countermeasures (TSCM), intelligence, counter terrorism and managed Remote Spectrum Surveillance and Monitoring (RSSM). This leading TSCM software also has  applications in the law enforcement community, government, military, space, and spectrum regulatory agencies. Kestrel TSCM Professional Software also provides unique features and functionality for private sector and corporate security teams conducting TSCM, counter espionage related technical security operations.

Watch the Kestrel TSCM Professional Software Video:

View the Kestrel TSCM Professional Software Brochure.

NEW Kestrel TSCM SIGINT version now available (Restricted to Military, Government & Law Enforcement Sales Only.)

Learn more about USA Kestrel TSCM Software In Person Classroom Training.

About the Kestrel TSCM Professional Software License

• A single full software license is permanent across one (1) computer with up to two (2) SDRs for hand off operation. Add additional SDRs with OPT ASK(s).
• There are no annual maintenance, or upgrade fees within the same software generation.
• Supports Dual Receiver Operation (DRO) at the time of purchase, or as deployment needs and requirements change.
• Updates, bug fixes, new features and enhanced functionality are always provided free of charge within the same generation of the software.
• Additional ASKs and optional software modules (OPT AMCS and OPT DTAP-GPS see below) require an upgrade fee.
• If customers choose to upgrade to a new generational software release, an upgrade fee will apply. However, upgrading is a choice as the prior generation of the software will remain supported.
• Software updates are provided for air gapped and non air gapped systems.

Optional Modules

Kestrel TSCM Professional Software Optional Modules enhance its capabilities and functionality. Optional modules include OPT AMCS (Automatic Measurement and Collection System) and OPT DTAP-GPS (Dynamic Trace Autonomous Platform GPS).

• OPT AMCS (Automatic Measurement and Collection System) provides remote TCP-IP capability with our powerful Software Development Kit (SDK) for custom client-side monitoring solutions. This capability is based on the end-users remote client. The AMCS option includes a powerful SDK with all the documentation, code examples and both console and a graphical remote client example.

  The entire platform is based on a simple scripting technology that can be programmed to stream all measurement parameters via a TCP/IP network connection, or optionally, write to the remote host computer.

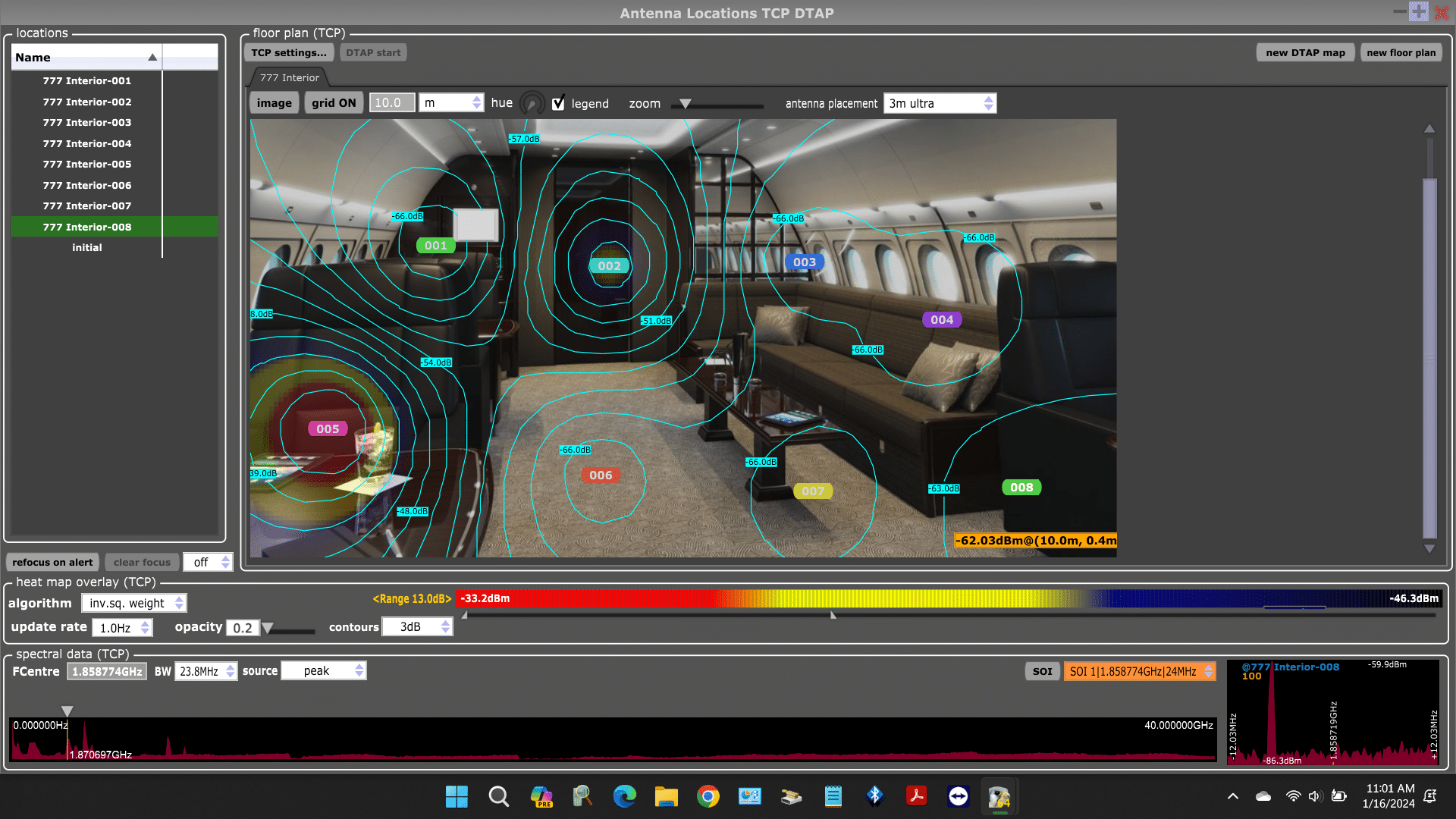

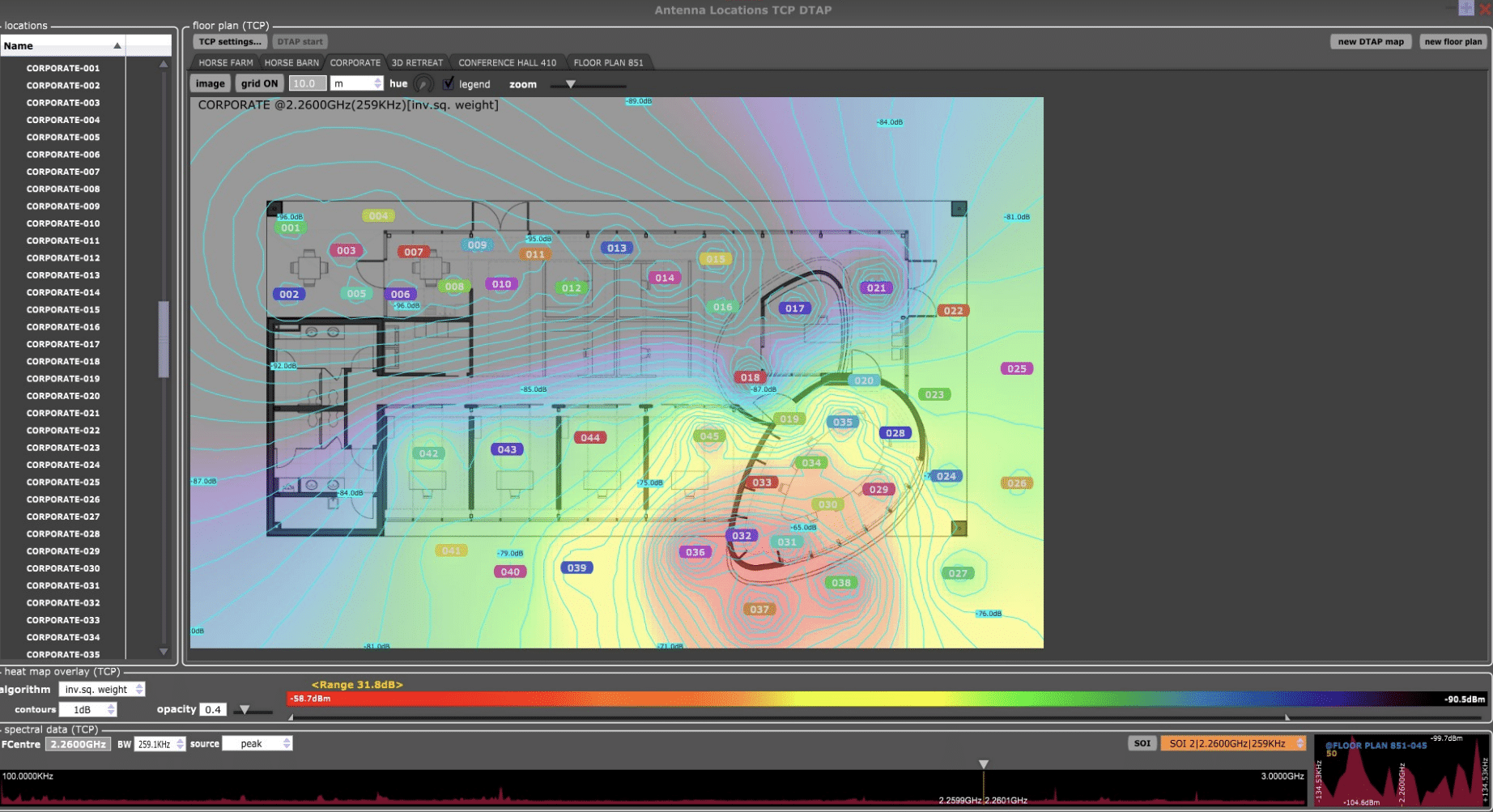

• OPT DTAP-GPS (Dynamic Trace Autonomous Platform GPS) supports the mobile deployable of our autonomous, GPS enabled, wide-area Dimensional Geo-Location Heat Mapping resources. It provides a fully autonomous GPS based geo-location heat mapping process for ground mobile, air and space applications. OPT DTAP-GPS can dynamically update interactively with a network based real-time moving map, or can operate across a static reference map image. It is utilized to capture and plot a wide search Range of Interest (ROI) bandwidth LDSA capture of the ambient RF spectrum environment.

  The ability to include multiple bands of interest, such as control and talk channels, up-link and down-link spectrum blocks is fully supported. The ability to autonomously render a powerful geo-location heat mapping process across any captured bandwidth down to the channel level in both real-time and during post analytical analysis is now a reality.  Once the DTAP-GPS is programmed by the technical operator, its OneTouch technology engages a fully autonomous collection process allowing the technical operator to give 100% focus on walking (backpack), driving (mobile) or flying (airborne), totally hands-free and hands-off.

Frequency Range: 9 kHz- 40 GHz

Analysis Bandwidth: Maximum 100 MHz

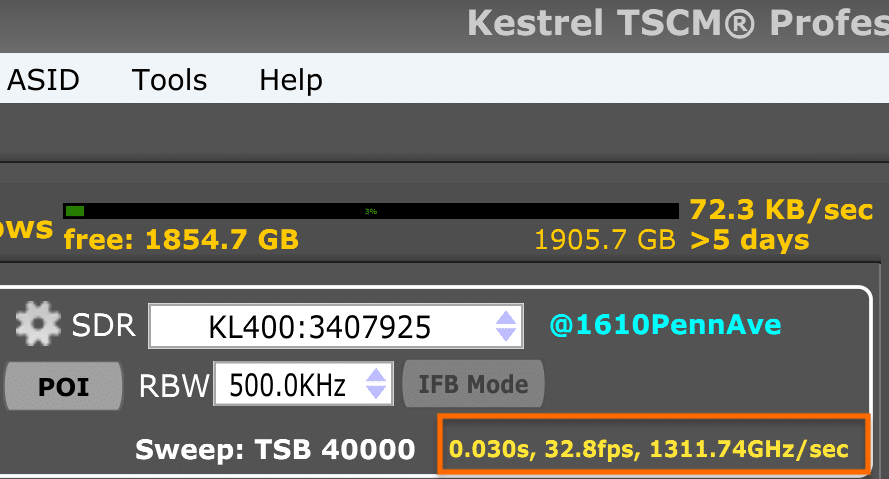

Sweep speed – 1300 GHz/s (MAX) FPGA RBW = 500 kHz, B-Nuttal window, spurious rejection: Standard

Operating Temperature (device core temperature): 0 C -60 C | 32 F – 140 F (Standard temperature class). -20 – 70 C | -4 F – 158 F (Extended Temperature Class Option).

Weight and Size: 5.472 inches x 2.72 inches x 1.14 inches, Weight: 13.8 Ounces.

The Kestrel Lightning RTSA is certified for use with the Kestrel TSCM Professional Software and the Kestrel TSCM SIGINT software.

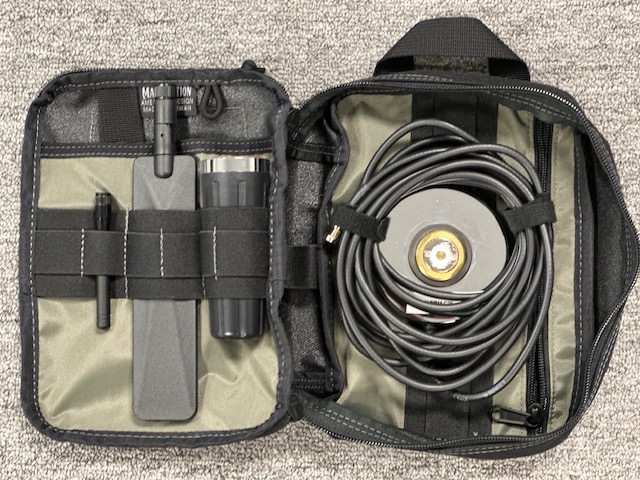

The Thunderbolt Antenna Kit Includes:

• OmniMag Spec.  70 mhz – 20 ghz – (Usable out to 40 GHz)
• Blade – Omni Directional Ultra-Wide Band Hinged Swivel SMA-M Antenna | 70 MHz – 20 GHz  | Omni-Directional radiation pattern giving it a 360-degree uninterrupted signal quality with a maximum efficiency over 80% and peak gain of ~3.2 to 3.6 dBi across all frequencies.
• Monopole – Omni Directional TCP Antenna | super low profile form factor  | 70 MHz – 6 GHz (Usable out to 20 GHz).
