The Operator TSCM Sweep Kit

ComSec LLC BBB Rating



The Operator TSCM Kit

ComSec LLC’s The Operator Kit is a professional Technical Surveillance Countermeasures TSCM Sweep Kit provided in a single rolling hard case. With this full suite of TSCM equipment, the TSCM Operator can detect live transmissions, as well as dormant eavesdropping devices and compromises. The Operator Kit is a cost effective solution that also makes transport of the TSCM equipment efficient and convenient.

If you’re looking for professional TSCM equipment with the convenience of mobility, look no further than The Operator Kit!

REQUEST QUOTE

USA Sales & Delivery Only.

(Note: The Operator TSCM Sweep Kit shown at left includes the QCC ELF upgrade, and the Lockhart Optical and Lockhart Conducted add ons.)



The Operator TSCM Sweep Kit Includes:



WAM-X25 Wireless Activity Monitor

The Operator TSCM Sweep Kit includes the WAM-X25 Wireless Activity Monitor which detects and logs all types of radio frequency devices in the range of 0-14 GHz. The WAM-X25 features a 0-14 GHz wideband detector that provides the highest range of coverage of all RF activity in the target area. The frequency of the detected signal (up to 6 GHz) can be seen simultaneously. And, the WAM-X25 ‘Livescan’ software shows the detected live signal pattern graphically to help identify the signal type. This can be particularly useful when searching for pulsing or burst devices such as GPS trackers.

The Operator Kit - WAM-X25 Wireless Activity Monitor

The WAM-X5 has separate worldwide multi-band cellular coverage. Simply select the international region the device is being used in and the WAM-X25 will detect signals from all the relevant local cellular bands.

The WAM-X25 has separate 2.4 GHz & 5 GHz bands for detecting the rapidly growing threat from Wi-Fi / Bluetooth / Video and other latest generation ‘Store & Forward’ devices. The WAM-X25 features an independent Wi-Fi Network (2.4 & 5 GHz) Analyzer to provide detailed activity information about WLAN networks in the surrounding area such as Hotspots, Routers, Wi-Fi cameras etc.

The unit also features a built-in Bluetooth analyzer to list nearby active Bluetooth devices such as smartphones, tablets, headphones, fitness trackers, etc.

The Operator Kit - WAM-X25 Wireless Activity Monitor

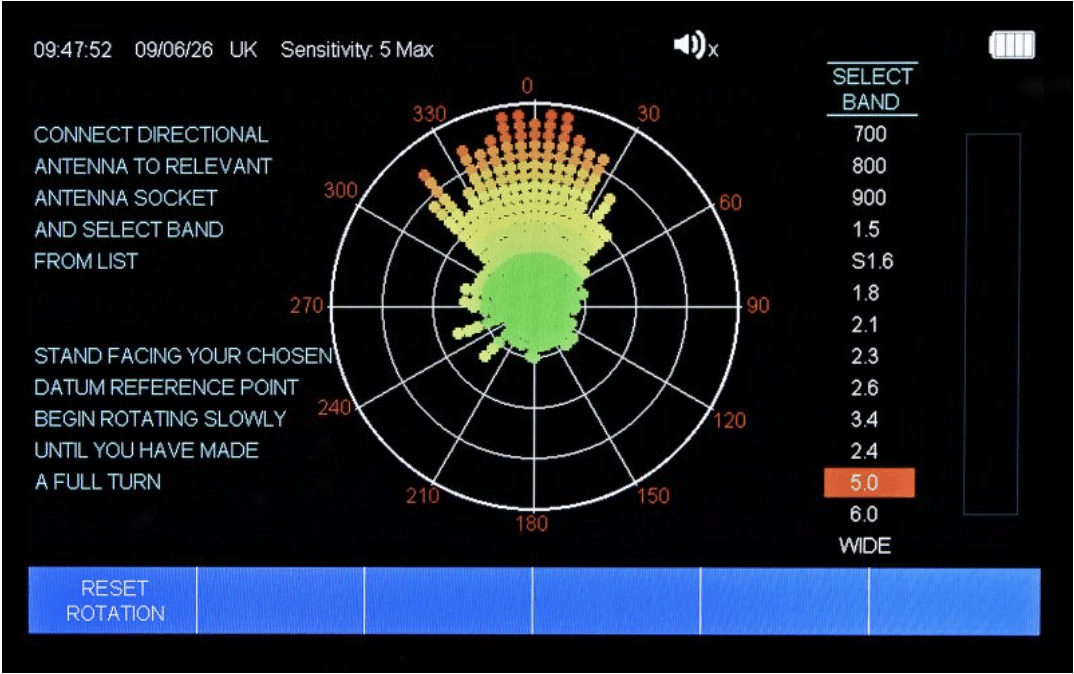

The direction find mode enables the user to locate the source of a detected RF signal by rotating the WAM-X25 through 360 degrees using the supplied directional antenna. By slowly rotating the unit, signal strength information is gathered and plotted graphically over 360 degrees to give the TSCM operator an accurate indication of the detected signal source.

View the Wireless Activity Monitor WAM-X25 Brochure.

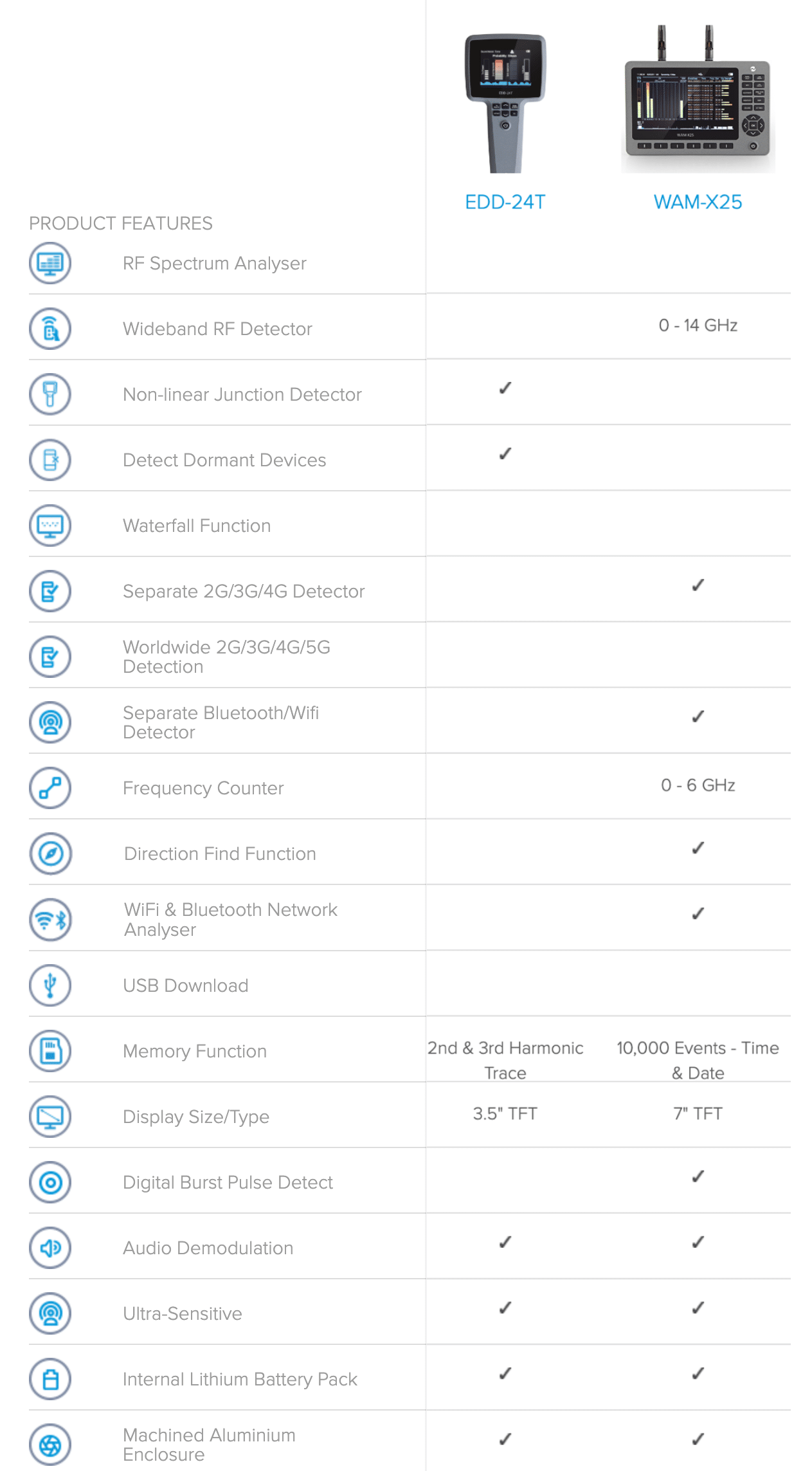

View Product Features Summary.



EDD-24T Handheld Non Linear Junction Detector (NLJD)

The Operator TSCM Sweep Kit includes the handheld Non Linear Junction Detector (NLJD) Model EDD-24T  which detects the presence of semiconductor circuits that are used in all modern electronic devices such as mobile phones, tracking devices, listening devices, covert cameras, digital voice recorders, SIM cards etc. And, the EDD-24T will detect such devices whether they are switched on and in use, powered on but in standby mode, or even switched off without any power.

View the Non Linear Junction Detector EDD-24T Brochure.

View Product Features Summary.



HMTP-42 Thermal Imager                                                                                                                   The Operator TSCM Sweep Kit - IR Thermal Camera

The Operator TSCM Sweep Kit includes a 256 x 192 (49,152 pixels) IR thermal imager. The Pocket 2 is equipped with a high-resolution HIKMICRO VOx detector, an 8MP optical camera, and a 3.5″ LCD touch screen. It helps the TSCM operator quickly and efficiently locate hidden devices and accurately measure temperatures. The 25Hz frame rate keeps up with fast inspections and the Wi-Fi function allows the device to share images in real-time. Its RUGGED & DURABLE 16G eMMC flash storage can store approximately 60,000 standard thermal/visual images or up to 10 hours of recording videos. Its leading class built-in Li-Ion rechargeable battery can support up to 4 hours of continuously operating; 2 M Drop Test & IP54.

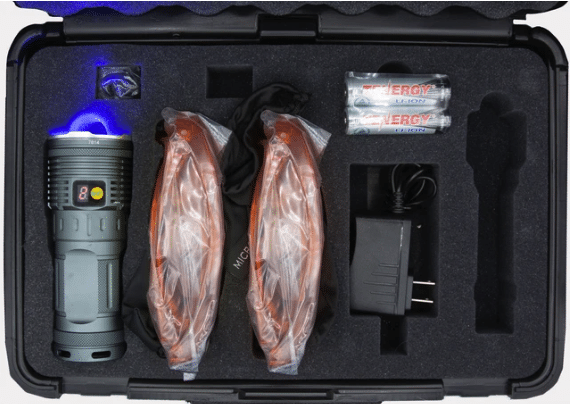

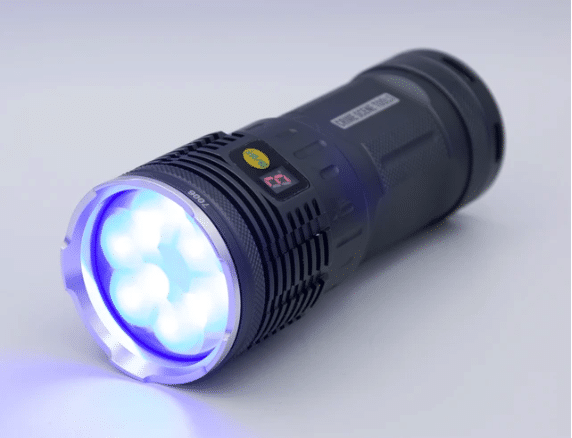

450 High Flux Forensic Light

The Operator TSCM Sweep Kit - Forensics Light

The Operator TSCM Sweep Kit - Forensics LightThe Operator TSCM Sweep Kit includes a high flux 450-455nm forensic flashlight featuring an XPE-2 royal blue Cree emitter, black anodized body, and diffuse quartz front element.  The resulting smooth diffuse beam has no rings or harsh edges and is pleasing to use with reduced eye strain. Flashlight operates on 2xCR123A cells (included) for about six hours, or can operate on 1 x 18650 rechargeable battery. U60 orange barrier viewing glasses and battery charger are included.

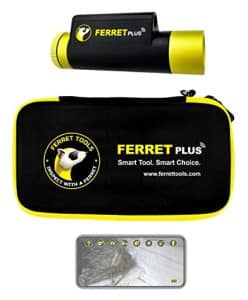

WiFi Inspection Camera

The Operator TSCM Sweep Kit - Ferret Plus Camera

The Operator TSCM Sweep Kit includes the Ferret Plus WiFi Inspection Camera Kit. The Ferret Plus brings you the ultimate innovation in inspection technology. Includes built-in (on board) memory and the first ever non-contact voltage detector. The Ferret Plus is ideal for providing faster, easier close up visual inspections of dark and hard to reach spaces, and comes with a range of thread adaptors and a handheld extendable rod. The free app will lets the TSCM operator record photo or video directly to an iPhone, Android or tablet.

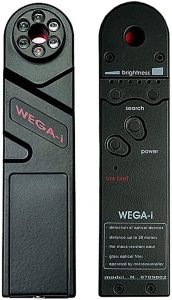

WEGA Hidden Camera Detector

The Operator TSCM Sweep Kit - Camera Detection

The Operator TSCM Sweep Kit - Camera Detection

The Operator TSCM Sweep Kit includes the WEGA hidden camera detector. The WEGA can discover lenses of all types of covert cameras, not depending on their working state. Its LED matrix radiates a powerful infrared beam which is then reflected by a video cameras optics and is easily detected by the TSCM operator. The IR-filtering glass built into the WEGA helps the TSCM operator avoid natural reflections from surfaces, and concentrate on finding the exact location of a hidden camera.

  • Detects of all types of hidden video cameras regardless of  their working status
  • Distance of detection between 6.5 and 32 feet
  • IR filter for rejection of natural reflections
  • Adjustable power of radiation
  • Powered by 2 AAA batteries (Not included)
  • Battery discharge indicator
  • Size 1.6 x 1.3 x 0.6 In.

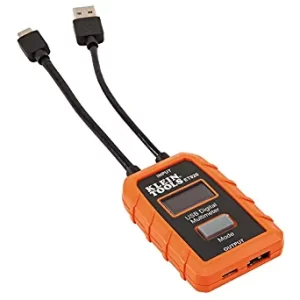

Multi Function USB Tester

The Operator TSCM Sweep Kit includes the ET920 for Type-A and Type-C ports. It accurately and reliably measures and displays the USB port voltage, current, capacity, energy, and resistance simultaneously. It can function with any USB-A and most USB-C ports, including Qualcomm Quick Charge ports that have the ability to deliver power. The Multi-Function USB Tester provides real-time detection of the state of charge, voltage, current, capacity, electricity, power, equivalent impedance, temperature and other indicators of electrical USB connectors and cables. The ET920 will detect surreptitious technical threats embedded within USB cables, charging ports and power supplies.

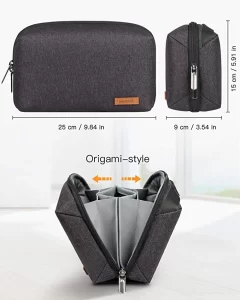

Tech Pouch Zippered Case

The Operator TSCM Sweep Kit also includes a zippered tech pouch to convenient store all field kit tools, chargers and lead cables for the above TSCM equipment. With high-quality material, stylish and sleek design, compact layout and ample capacity, the Inateck origami-style versatile storage bag can store various items easily. It is weatherproof & water-repellent.

REQUEST QUOTE

USA Sales & Delivery Only.

(Note rolling hard case, case insert and lid organizer pictured are representative.)

Rev: 03292024

The Operator Kit – Upgrade & Add On Options



1) Upgrade: Replace the WEGA Camera Detector with The QCC ELF Hidden Camera Detector

QCC ELF Hidden Camera Detector Red

2) Add On:  The Lockhart Conducted

Lockhart TSCM Kit ConductedThe Lockhart Conducted detects high frequency signals on infrastructure wiring. It provides an easy to use capability for scanning mains and data cabling to identify unwanted or hostile signals by the TSCM technical operator.



3) Add On: The Lockhart Optical

Lockhart TSCM Kit OpticalThe Lockhart Optical detects optical emissions which may contain intelligence. Based around state-of-the-art indium, gallium, arsenide & silicon sensors, the Optical detector captures emissions up to 1.7μm – well above the capability of silicon sensors alone.  Lockhart Optical detects visible light and near-IR signals using conventional silicon sensors, therein giving coverage of all likely emitting sources.

REQUEST QUOTE

PRODUCT HIGHLIGHTS

  • Detects 2G / 3G /4G / 5G  devices – plus Wi-Fi / Bluetooth 2.4 GHz & 5 GHz devicesWAM-X25 Wireless Activity Monitor JJN Digital
  • Detects Mobile Phones, Smartphones, GPS Trackers, SMS (Texts).
  • Detects GSM Bugs, 3G /4G / 5G Video, Bluetooth & Wi-Fi Devices, Store & Forward devices
  • Worldwide Cellular Coverage – Simply select the relevant region of use
  • Separate Wideband RF Detector 0-14 GHz with Audio Demodulation
  • Separate 2.4 GHz & 5 GHz Wi-Fi Detector
  • Wi-Fi Network Analyzer provides data on nearby WLAN networks
  • Bluetooth Device Analyzer provides data on nearby Bluetooth devices
  • Direction Find Function for pin-pointing signal sources
  • Event Log records Time / Date, Band, Duration & Signal Strength of up to 10,000 Events
  • Log can be viewed on screen or saved to USB stick for storage/viewing on a computer
  • Graph Mode plots real time or historical graph of all detected cellular bands
  • Widescreen High Resolution 7-inch Color TFT Display
  • Adjustable Omnidirectional & Directional Antennas
  • Machined aluminum enclosure for maximum durability

View the Product Features Summary.

  • Detects all types of electronics – whether active, passive or even switched off
  • Easy to operate with an intuitive user friendly interfaceEDD-24T NLJD Non Linear Junction Detector
  • 2.4 GHz Transmit – up to 4 Watts
  • 2nd Harmonic (4.8 GHz) and 3rd Harmonic (7.2 GHz) Receivers
  • As powerful and sensitive as much larger so called ‘portable’ NLJD units
  • Detected material Indicator ‘Silicon’ or ‘Metal’
  • Will even detect the latest NANO SIM cards from up to 7.87 In.
  • Audible Tone and Demodulation Function through speaker or earphones
  • Battery life up to 4.5 hours
  • NLJD weighs just 1.54 Lbs.
  • Machined Aluminum Enclosure with Molded Plastic Antenna Cover

View Product Features Summary.

  • Thermal resolution: 256 x 192 (49,152 pixels)
  • NETD: < 40 mK (@ 25 °C,F#=1.0)
  • Temperature measurement range: -4°F to 752°F (-20°C to 400°C)
  • Accuracy: Max (±2°C/3.6°F, ±2%)
  • 8 MP optical camera – Thermal, fusion, PIP, and optical modes
  • Wi-Fi Connectivity
  • High Temperature Alarm
  • Manual. automatic, and 1-Tap level and span
  • 1.0x to 4.0x continuous digital zoom
  • Built-in 16 GB memory
  • 25 Hz image frequency
  • 3.5″ LCD touch screen display
  • LED Work Light
  • Up to 4 hours continuous runtime
  • Sweep/Inspection where a smooth blue beam light source is required.
  • Engineered smooth beam ensures excellent photographic results.
  • 450nm Royal Blue LED Flashlight, batteries, charger & U60 orange glasses.

TECHNICAL SPECIFICATIONS

Technical Performance Specifications at 68 Degrees FWAM-X25 Wireless Activity Monitor JJN Digital

  • Wideband Frequency Range: 10 MHz – 14000MHz (14.0 GHz)
  • Cellular Regions Covered: North America, UK, Europe, Asia, Africa, South America & Australia
  • Cellular Frequency Range: International bands – (300 MHz to 6 GHz) – Maximum 10 viewable bands – Sensitivity -70 dBm Max
  • 2.4 & 5 GHz Frequency Range: 2400 to 2485 MHz & 5150 to 5850 MHz
  • Wi-Fi Analyzer: 802.11a/b/g/n: 2.4 GHz and 5 GHz
  • Display: TFT Color 7.0” High Contrast Graphic Display
  • Battery: Internal Lithium-Polymer rechargeable ; Operating duration – fully charged battery – up to 8 hours
  • Charging: Micro USB socket – Charge Time ~ 4 hours
  • Operating Temperature Range: 5 F to 155 Degrees F – Relative Humidity < 90%
  • Dimensions: 9 In. x 5.9 In. x 1.1 In.
  • Weight: Main Unit – 2.2 Lbs., Carry Case Complete – 6 Lbs.
  • Signal Processing and Control: RISC Based Microcontroller with real time clock
  • Event Log: Maximum 10000 Events
  • USB Socket: For USB Stick download only
  • Transmit Frequency: 2.400 GHZ to 2.425 GHz (ISM Band Type B)Handheld Non Linear Junction Detector edd 24T Case
  • Transmit Power Level: up to +30dBm (1 Watt)
  • Radiated Power Antenna: up to +36dBm (4 Watts) within allowable limits of ISM band (Type B)
  • Display: 3.5 In. Color TFT Daylight Readable
  • Receiver Sensitivity: better than -120dBm on 2nd and 3rd harmonics
  • Receiver Bandwidth: Approximately 10KHz
  • Battery: 3.7 Volt Lithium Polymer Internal rechargeable
  • Battery Life: 4.5 Hours (Minimum TX Power), 2.0 Hours (Maximum TX Power)
  • DC Charge: Micro USB Socket 5V 1A, Input 110/220V Auto-switching – International Adaptors
  • Charger: Output 5V DC 2A
  • Audio: Internal Loudspeaker or via 3.5mm Earphone Socket
  • Operating Temperature: 0 to 104 Degrees F
  • Enclosure: Machined Aluminum Enclosure with Plastic Antenna Cover
  • Dimensions Main Unit: Height 8.86 In. x Width 4.65 In. x Depth 2.01 In.
Thermal Module
Detector Type Vanadium Oxide Uncooled Focal Plane Array
IR Resolution 256 x 192 (49,152)
Detector Pitch 12 μm
Spectral Range 8 to 14 μm
NETD < 0.04°C 40 mk) at 25°C (77°F) ambient temperature, F# = 1.0(
FOV (Field of View) 50° H x 37.2° V
Image Frequency 25 Hz
Focal Length 3.5 mm
Focus Fixed
Minimum Focus Distance 0.3 m (0.98ft)
IFOV (Spatial Resolution) 3.43 mrad
F-number F1.1
Optical Module
Built-in Visual Camera 3264 x 2448 (8 MP)
Focus fixed
FOV 64.6° H x 51.5° V
Picture Resolution Configurable: 2 MP, 5 MP, 8 MP
Video Resolution 640 x 480
Image Display
Display 640 x 480 Resolution, 3.5″ LCD Touch Screen
Screen Brightness Manual adjustment
Digital Zoom 1.0x to 4.0x continuous
Color Palettes 7: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion, Rain
Image Modes Thermal / Optical / Fusion / PIP
PIP Resizable and movable infrared area on the visual image
Fusion Thermal image with visual camera details
Level / Span Auto / Manual / 1-Tap Touch Screen
Minimum Temp Span (Manual) 2°C (3.6°F)
Measurement and Analysis
Object Temperature Range -20°C to 400°C (-4°F to 752°F)
Accuracy Max. (± 2°C/3.6°F, ± 2%), for ambient temp from 15°C to 35°C (59°F to 95°F) and object temp above 0°C (32°F)
Measurement Presets Center Spot, Hot Spot, Cold Spot, Off
High Temp Alarm Audible/visual alarm above user defined temperature threshold
On-Camera Emissivity Correction Variable from 0.01 to 1.0 or selected from the materials list
On-Camera Reflected Temperature Compensation Automatic, based on the input of the reflected temperature
On-Camera Transmission Correction Automatic, based on the inputs for distance and humidity
Data Storage
Storage Media Built-in EMMC (16 GB)
Image Storage Capacity Approx. 60,000 images
Image File Format Radiometric.JPEG with measurement data included
Thermal.THM.JPEG without measurement data included
Text Note Max. 200 characters
Video Storage Capacity Approx. 10 h
Video File Format Standard MP4 non-radiometric video
Software
PC Software HIKMICRO Analyzer
APP HIKMICRO Viewer App
Cast Screen UVC Alarm Client
Battery
Power Supply 5 VDC / 2 A (Charging via USB), fast charging
Power Consumption 1.92 W
Battery Type Dismountable and rechargeable Li-ion battery
Battery Operating Time 4 hours continuous running per battery
(actual life varies depending on settings and usage)
Battery Charging Time 1.5 h to 94%, 1.5h to full charge
Battery Charging System In-imager charging, fast charging
AC Operation AC operation with included power supply (100 VAC to 240 VAC, 50/60 Hz)
General
Wi-Fi 802.11 b/g/n (2.4 GHz + 5 GHz)
Bluetooth Bluetooth 4.2
USB Interface ISB 2.0, Type-C
LED Light Yes
Microphone Yes
Buzzer Yes, audible alarm of above temp threshold
Carrying Pouch Yes
Protection Level IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Drop Test Height 2 m (6.56 ft.)
Warranty 3 Years for whole product, 10 years for detector, and 2 years for battery
Recommended Calibration Cycle 1 Year (assumes normal operation and aging)
Working Temperature Range -10°C to 50°C (14°F to 122°F)
Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
Relative Humidity < 95% non-condensing
Weight Approx. 218 g (0.481 lb)
Dimensions 138.5 mm x 85.2 mm x 23.6 mm (5.45 in x 3.35 in x 0.92 in)
Tripod Mounting UNC 1/4″ -20
Languages 21 Languages: English, German, French, Spanish, Portuguese, Italian, Czech, Slovak, Polish, Hungarian, Romanian, Dutch, Danish, Norwegian, Finnish, Swedish, Russian, Turkish, Japanese, Korean, Chinese
  • Reliable regulated solid-state blue emission from latest 3 watt light source.
  • 450 nm emission.
  • Diffuse quartz front element – Smooth medium beam.
  • Current regulated circuitry maintains constant LED output.
  • Powered by long shelf-life CR123A lithium cells (included).
  • Also supports rechargeable Li-lon 18650 cell (now included).
  • Tailcap switch features momentary on as well as on/off functionally.
  • 6″ long x 1.5″ wide approx.
  • Runtime 6 hours (approx., with CR123A cells).
  • LED lifetime > 10,000 hours.
  • Lanyard included.
  • Made in USA U60 (orange) viewing glasses.
  • Dual-channel charger accepts 100-250VAC input.

Benefits of The Operator TSCM Sweep Kit

  • TSCM equipment is high quality, field tested and provides optimal performance.
  • Designed specifically for professional countermeasures use (TSCM).
  • The Operator Kit provides as a fully operational TSCM sweep kit.
  • The Operator TSCM Sweep Kit contains everything you need in single rolling hard case.
  • The system is cost effective, mobile and travel friendly.
  • The Operator Kit fits in the overhead storage of most aircraft.
