Handheld RF Spectrum Analyzer HSA-Q1



The Handheld Spectrum Analyzer HSA-Q1 is designed specifically for professional countermeasures use. With a frequency range of 0 to 13.4 GHz and sweep time of just half a second, the HSA-Q1 spectrum analyzer offers unprecedented performance in a truly handheld package. The unit detects all types of RF signals within range, especially modern pulsed burst signals that can be missed by slower sweeping units.

This Handheld RF Spectrum Analyzer has been designed with the highest possible technical specification to ensure maximum detection capability and has a range of invaluable features to aid countermeasures RF detection or ‘Sweeps’. Yet, despite its technical capability the HSA-Q1 is easy to operate and features an intuitive, user friendly interface.

View the Handheld Spectrum Analyzer HSA-Q1 Brochure.

REQUEST QUOTE

Frequency spans can be set anywhere from the whole 13.44 GHz range down to just 25 Mhz when detailed signal analysis is required. Simply move the cursor onto any detected signal and press the ‘Zoom’ button to view the signal in more detail.

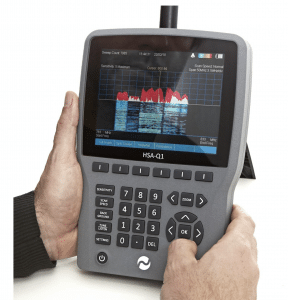

The HSA-Q1’s Waterfall (Spectrogram) function shows a real time full color graphical display of any detected signal to allow the user further analysis. This is especially useful in analyzing modern pulsed digital signals (or frequency hopping signals) such as those from Cellular, Wifi, Burst and GPS based devices.

RF Sensitivity can be adjusted over 5 levels: Maximum (-80 dBm), for example, to detect all signals including those in other adjacent rooms or even outside the building, down to Minimum for when location of a specific nearby signal source is required.



REQUEST QUOTE



The Handheld Spectrum Analyzer HSA-Q1 features a Tune-Listen function where at the press of a button the user can direct tune into any signal detected, view the signal pattern and see the signal strength live (down to -100dBm). If required, the user can also select Wide FM, Narrow FM or AM demodulation and listen to the detected signal through the built in loudspeaker or earphones. This can be especially useful in identifying conventional bugs with microphones or eliminating other innocent detected signals such as broadcast radio.

If required, this Handheld RF Spectrum Analyzer can perform a ‘Background’ scan where it will learn and store the current RF environment. This can be stored and recalled at any time in the future for comparison to see if any new suspect signals have appeared in the RF environment since last checked. New signals will be highlighted on the display for closer inspection.

Handheld RF Spectrum Analyzer HSA-Q1



Persistence mode offers further analysis of any detected signal. The more ‘persistent’ the signal is (the longer it remains detected) its color will change from blue through the color spectrum to red for the longest present signals. This can be used to identity persistent signals that might otherwise be hidden in a noisy RF environment.

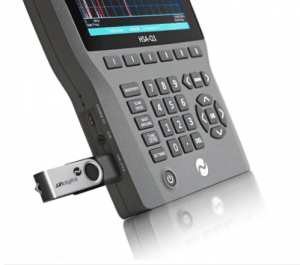

The HSA-Q1 Memory Log function means sweep data can be stored by simply connecting a USB stick. Sweep data will be stored in time and date format and displayed graphically to be recalled at any time for further graphical analysis.

Please follow and like us:
error

Product Information

  • Frequency Range 1 MHz to 13.44 GHz
  • Sweep time of just 0.5 seconds  (Full Range)
  • Spectrogram Waterfall Function for detected signal analysis
  • Tune & Listen demodulation function – AM/WFM/NFM
  • Data Logging to USB Stick with Time & Date stamp
  • Background Memory Function to compare previous sweeps
  • Very High RF Sensitivity (-80 dBm Sweep, -100 dBm Direct Tune)
  • 6″ TFT Display Screen – Outdoor Readable
  • Audio through internal Speaker or Earphones
  • Multi-element custom antenna supplied
  • Internal Lithium Polymer Battery – 4 Hours Battery Life
  • Weight just 2.9 Lbs.
  • Machined Aluminum Enclosure
  • Supplied in Compact Military Standard Carry Case

One (1) year manufacturer’s warranty.

View Handheld Spectrum Analyzer HSA-Q1 Brochure.

Your Purchase of the Handheld RF Spectrum Analyzer HSA-Q1 includes:



Handheld RF Spectrum Analyzer HSA-Q1

  • HSA-Q1 Handheld Spectrum Analyzer
  • Multi-Element Concentric Antenna (0.9 In.)
  • Telescopic Whip Antenna
  • Charger with International Adaptors
  • Earphones
  • Military Standard Compact Carry Case

Carry case dimensions: L 14.3 In x W 11.1 In x H 4.7 In

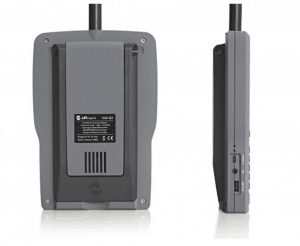

Handheld RF-Spectrum Analyzer HSA-Q1The HSA-Q1 handheld Spectrum Analyzer is genuinely portable for handheld use and is also fitted with a retractable stand for desktop use. The unit weighs just 2.9 Lbs. and is encased in a machined aluminum enclosure for ultimate durability.

The internal Lithium Polymer battery pack gives up to 4 hours of use from one charge. The unit can also be operated continuously with the charger connected. The whole package is supplied in a compact military standard carry case for ultimate protection and portability.

Handheld Spectrum Analyzer HSA-Q1 Whip AntennaFor maximum flexibility the HSA-Q1 is supplied with two antennae:

Multi-Element 13.44GHz  (Dimensions: Length 8.7 In. x Dia. 0.7 In) for general use; and

Telescopic whip antenna for low frequency use.

Details

JJN Digital products are manufactured in the UK using the highest quality, professional grade components and processes.

All assembled circuits are fully tested and calibrated before final assembly.

All units are then tested on completion and every product undergoes a final test before shipping to the USA.

The JJN Digital HSA-Q1 handheld spectrum analyzer is warrantied to be free of manufacturing defects for twelve (12) months.

The HSA-Q1 handheld spectrum analyzer carriers the CE mark indicating conformity with health, safety, and environmental protection standards for products sold within the European Economic Area (EEA).

Benefits of the HSA-Q1 RF Spectrum Analyzer

  • 1 MHz to 13.44GHz frequency range
  • Sweep time of just 0.5 seconds
  • Truly Portable Handheld Spectrum Analyzer
  • Designed specifically for professional countermeasures use (TSCM)
  • The Memory Log function means sweep data can be stored by simply connecting a USB stick
  • Designed, manufactured and tested in the United Kingdom to highest technical standards.
  • Budget friendly price.
